Render Pipeline
A render pipeline defines the steps that the renderer should take to generate the final image. In EZ the render pipeline is fully configurable. Which render pipeline your project uses is configured per platform in the asset profiles.
Projects may also use multiple different render pipelines, for example when doing render to texture (TODO).
Render Pipeline Asset
The render pipeline asset is used to create configurations in a visual way. A pipeline generally flows from left to right. There are two different types of nodes in the graph. Violet nodes are render passes, red nodes are extractors.
Extractors
Some extractor nodes have configuration properties, but they usually don't have any input or output pins. When an extractor is present in a pipeline, it gets executed every frame and is responsible for finding objects to render. Most pipelines need at least one type of extractor, such that the render pipeline has something to do, at all. Only few pipelines don't need extractors, for instance ones that operate only on images, for example to downscale or blur an image.
For a list of all available extractor nodes, see this page.
Programming Details (C++)
All extractor nodes are C++ classes that derive from ezExtractor. When an extractor finds an object to render, it records this render data in the ezExtractedRenderData object that it is given. The render data to record differs, depending on the type of object to render. For example to render a mesh, different data has to be recorded, than when rendering a particle effect. Render data is stored in objects which derive from ezRenderData.
After extraction, all render data is sorted according to various criteria (distance to camera, transparency settings and such) and then may get rendered by a render pass node. It may also get picked up multiple times, for example first by a depth pre-pass and then by an opaque render pass.
To actually render an object, a matching ezRenderer instance is used. Classes derived from ezRenderer specify which types of ezRenderData they can handle and which ezRenderData::Category they implement. So when a render pass attempts to render the SimpleTransparent category and there is render data of type ezGridRenderData then the ezGridRenderer will be used.
Extractors have to be part of a render pipeline configuration, so that one can control which kind of objects get rendered. Renderers are automatically instantiated through code reflection.
Render Passes
Broadly speaking, render pass nodes modify render targets. Usually they are handed one or multiple render targets through the input pins. They may use some inputs only for reading and others for writing. Opertions can be pure image manipulations, like downscaling or blurring, or they may use renderers (see ezRenderer) to draw render data that was prepared by extractors.
The input and output pins are used to connect which render target a render pass works on. In some cases a pass generates a completely new image, in other cases it forwards an input as its output.
In the image above the TonemapPass takes two inputs, one for the general image to tonemap, and one (optionally) to composite bloom on top of. There are different ways how the bloom image could be generated. In this case, the output from the AntialiasingPass is used both for the tonemapping, as well as for generating bloom. So the output is fed into two render passes. The BloomPass extracts overbright areas and creates a new (temporary) image with the result, which is then given to the TonemapPass as well.
NOTE
Render passes can't be deactivated individually. To disable parts of a pipeline, route around them with a switch pass. A switch forwards one of its inputs, selected through an integer blackboard entry, and all passes that only feed unselected inputs are skipped. See Render Pipeline Properties.
Be aware that render pass nodes are a high level functional unit. They don't map directly to render passes in graphics APIs like Vulkan or D3D12 even though there are definitely similarities.
For a list of all available pass nodes, see this page.
Render Scale
A view can render the scene at a lower resolution than its output and upscale the result at the end. This reduces the GPU cost on high resolution displays. Source Passes with ApplyRenderScale enabled, create their textures at the reduced size, and an Upscale Pass brings the image back to the full size. Everything after the upscale pass, for instance UI, is rendered at full resolution and stays sharp.
For the main view of a game, the render scale is set through the CVar App.RenderScale:
0(the default) selects the scale automatically, such that the scene is rendered with about as many pixels as a full HD image (1920x1080).- A value between
0.1and1uses that scale.
The pixel count that the automatic selection aims for can be changed in code through ezRenderWorld::SetAutoRenderScaleMaxPixels(). For other views the scale is set with ezView::SetRenderScale(), and ezRenderWorld::GetEffectiveRenderScale() computes the automatic value.
MSAA
The MSAA sample count is a property of the Source Passes that create the color and depth targets. To make it configurable, a pipeline contains one source pass per sample count and selects one of them with a switch.
The passes that convert between multi-sampled and regular textures also work with input that has no MSAA: the MSAA Resolve Pass copies it, the Antialiasing Pass and the MSAA Upscale Pass forward it unchanged. Thus the rest of the pipeline doesn't need a separate branch for rendering without MSAA.
Sub-Graphs

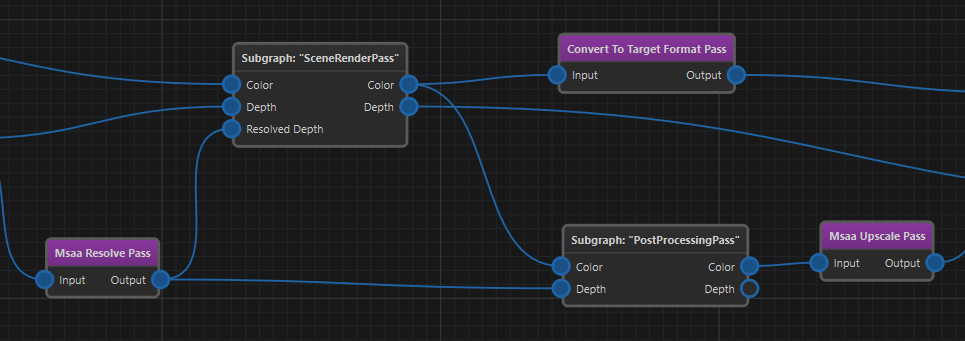

A render pipeline asset can be embedded into another one through a Subgraph node. Its Pipeline property references the render pipeline asset to embed. During asset transform the node is replaced with the contents of the referenced pipeline, so at runtime there is no difference to a pipeline that contains all passes directly. This is used to share parts between multiple pipelines, for example the scene rendering and post-processing steps, which the main and the editor pipeline have in common.
The pins of a Subgraph node are defined by the boundary nodes inside the referenced pipeline: Texture Input, Texture Output, Buffer Input and Buffer Output. The name of each boundary node becomes the name of the corresponding pin.
Default Render Pipelines
The Base data directory contains these render pipelines in RenderPipelines:
- MainRenderPipeline: The default pipeline for games, configured in the asset profiles.
- EditorRenderPipeline: Used by all editor viewports, including the asset previews. Post-processing is skipped in the debug render modes through a switch.
- Subgraphs: Shared parts of the pipelines above, such as the depth pre-pass, scene rendering and post-processing.
Some optional parts of these pipelines are controlled through switches that read pipeline CVars, for example whether SSAO and screen space shadows are used, or which MSAA sample count the main pipeline uses.
